What is easySunflow?

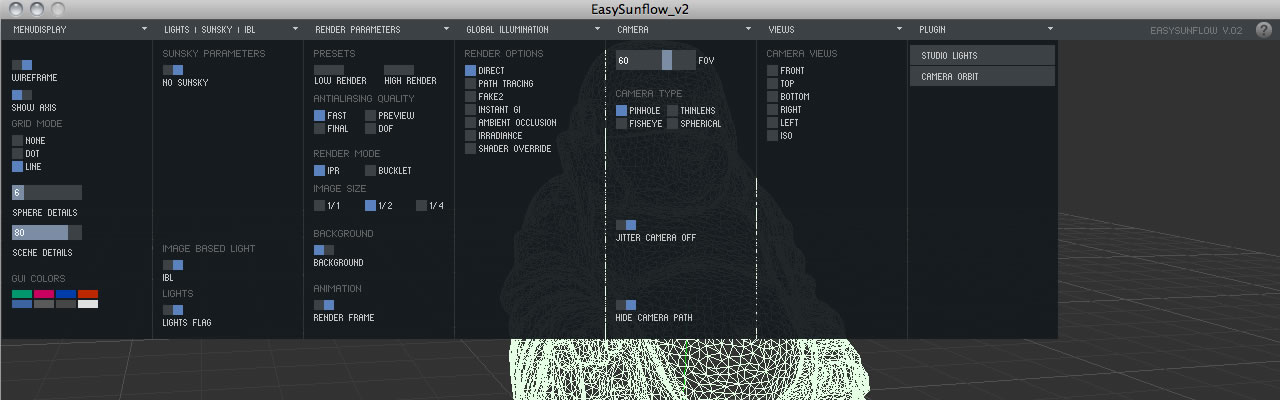

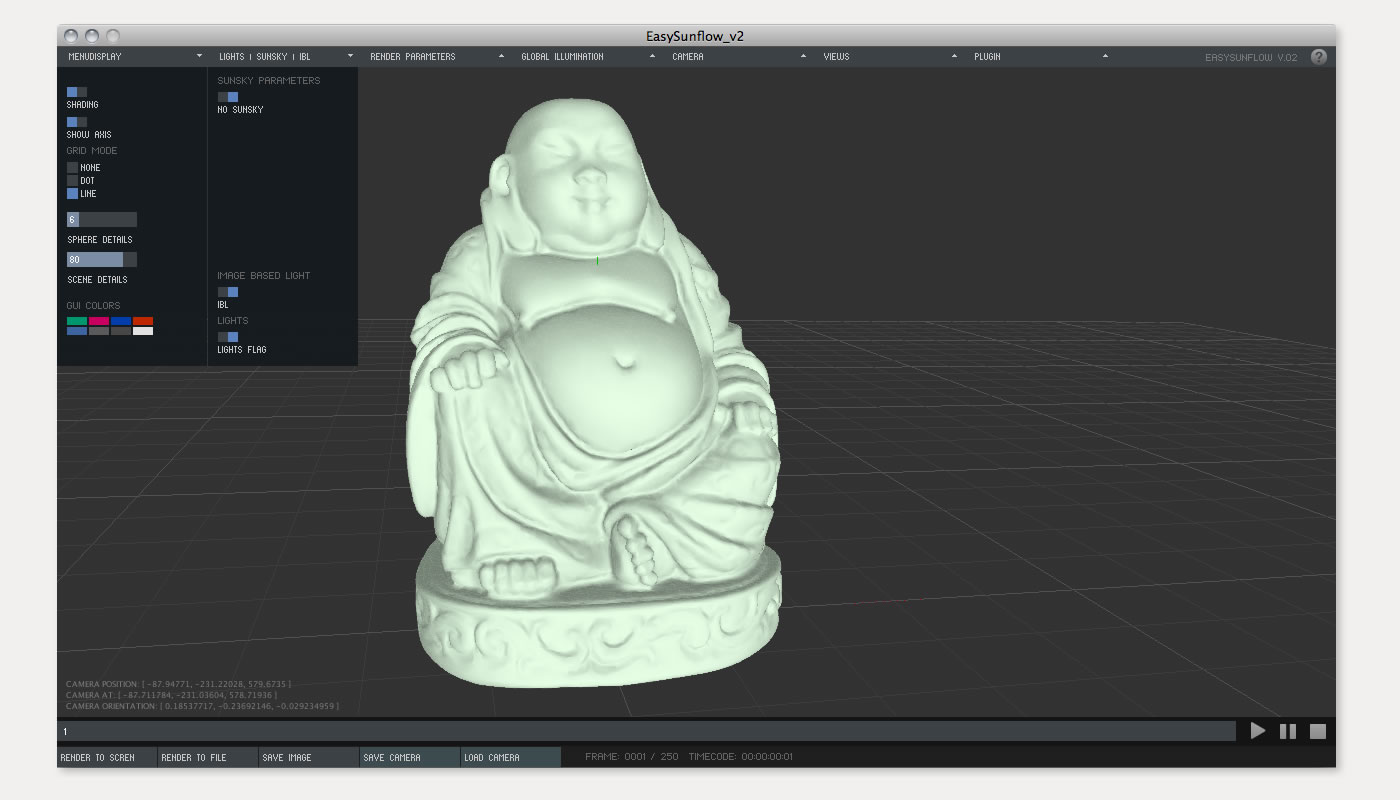

easySunflow is an user interface, to simplify the creating of scenes for Sunflow Render engine.
This software is written in Processing using the Sunflow API, is based on a simplified version of the java library SunflowAPIAPI and others, with custom functions to manage the rendering and the scenes.
I added commands to import the mesh from the library TOXILIBS with the possibility to use the powerful class from TOXILIBS Phisics. It is possible to use HEMESH library, with full use of primitives and modifiers. You can load external geometries using the Sunflow parser or the OBJLoader library, this is Wavefront .OBJ file loader for Processing, while for the stl models you can use TOXILIBS STLLoader.
Also i added a timeline with the possibility to animate many properties of objects and the camera, for every object you can create an Animator to manage keyframes. The new interface controls most of the necessary parameters to Sunflow, the camera position, the lights and quality of rendering and various types of global illumination. Using the new commands implemented in easysunflow, you can create very complex scenes in a short time.

PROCESSING SUNFLOW APIAPI TOXILIBS HEMESH OBJLOADER

easySunflow v2.0
Processing 1.5.1

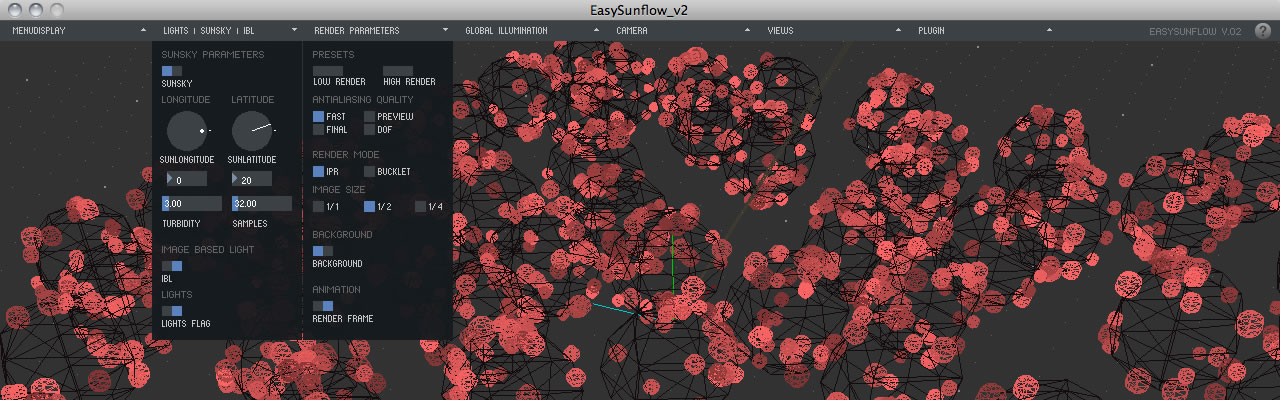

Features

in this video we can discover many new features of easySunflow 2.0

Tutorials

There are three tutorials on using easysunflow

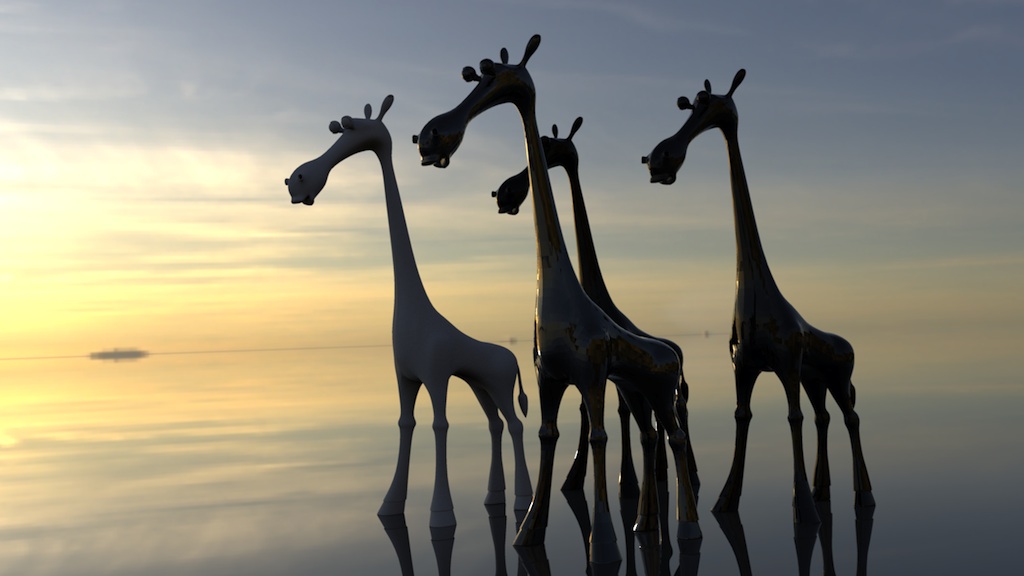

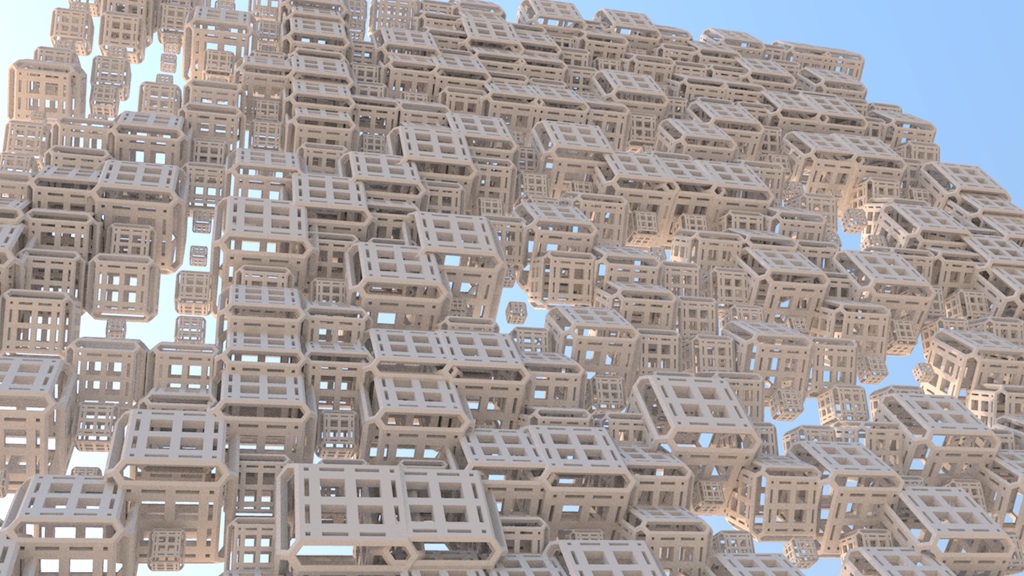

Gallery

here is a series of images and videos generated by Sunflow using easySunflow

Source Code

The following examples illustrate just some of the uses of the new classes of easySunflow 2.0

primitive
lights
colors
shaders
animators
camera keyframes
particles
toxilibs mesh
toxilibs instances
toxilibs STLReader
hemesh mesh
hemesh instances
hemesh animation
objloader mesh
objloader instances

//------------------------------------------------------------------
//  PRIMITIVES
//------------------------------------------------------------------

	// set sun position
	guiSunPosition(-150,30);

	// shader diffuse
	ShaderDiffuse diffuse_white =new ShaderDiffuse("diffuse_white", new SunflowColor(.9, .9, .9));
	ESF.addShader(diffuse_white);
	// shader shine
	ShaderShine shaderground=new ShaderShine("shaderground",new SunflowColor(.1, .1, .1),.1);
	ESF.addShader(shaderground);

	// sphere parameters
	Sphere thesphere= new Sphere();
	thesphere.setSize(50);
	thesphere.setPosition(-300,50,0);
	thesphere.setShader(diffuse_white);
	ESF.addGeometry("thesphere", thesphere);

	//cube parameters
	Cube thecube= new Cube();
	thecube.setSize(50);
	thecube.setPosition(-100,50,0);
	thecube.setShader(diffuse_white);
	ESF.addGeometry("thecube",thecube);

	// cylinder parameters
	Cylinder thecylinder=new Cylinder();
	thecylinder.setSize(50);
	thecylinder.setPosition(100,50,0);
	thecylinder.setRotation(90,0,0);
	thecylinder.setShader(diffuse_white);
	ESF.addGeometry("thecylinder",thecylinder);

	//torus parameters
	Torus thetorus=new Torus();
	thetorus.setSize(50);
	thetorus.setPosition(300,60,0);
	thetorus.setShader(diffuse_white);
	ESF.addGeometry("thetorus",thetorus);

	//ground parameters
	Ground ground=new Ground();
	ground.setShader(shaderground);
	ESF.addGeometry("ground", ground);

	//------------------------------------------------------------------

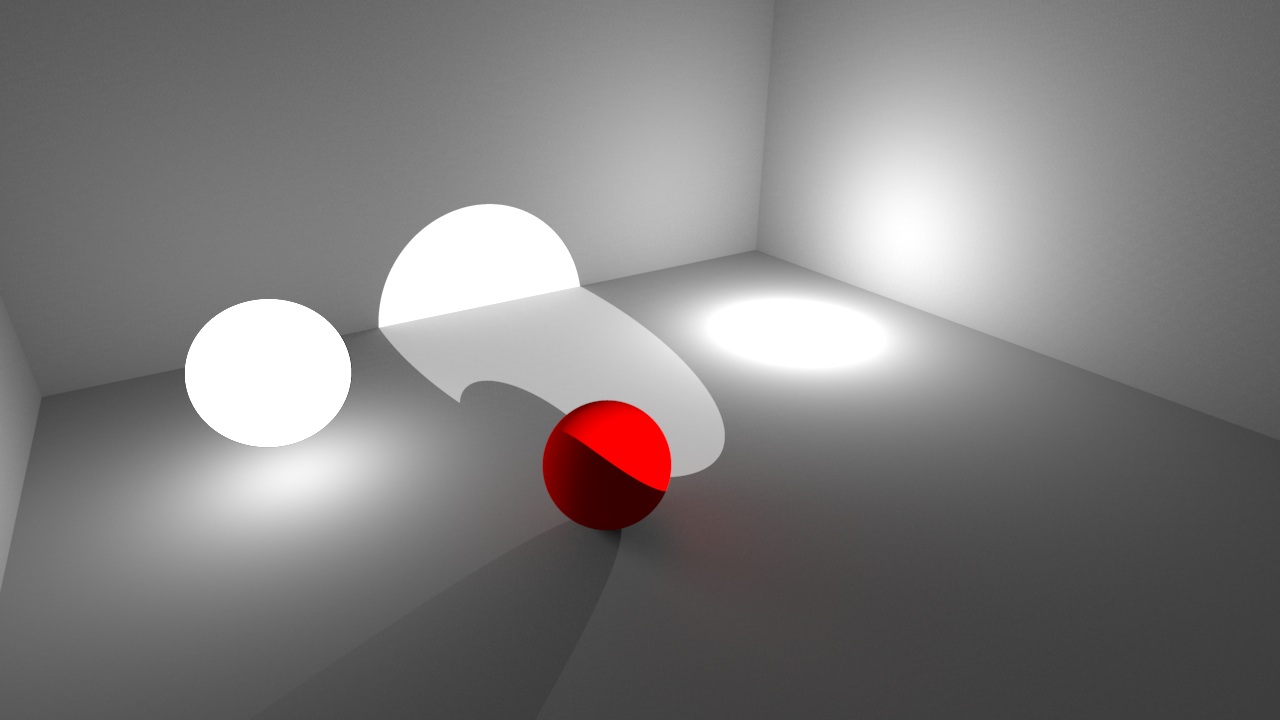

	//  LIGHTS
	//------------------------------------------------------------------

	// disable sun light
	guiSetSunVisible(false);

	// 	SpericalLight
	SpericalLight spherical=new SpericalLight("sperical",new PVector(-300,100,-200));
	spherical.setColor(color(200,200,200));
	spherical.setPower(5);
	spherical.setSize(60);
	ESF.addLight(spherical);

	// 	PointLight
	PointLight  pointLight=new PointLight("pointLight",new PVector(300,100,-200));
	pointLight.setPower(200);
	ESF.addLight(pointLight);

	//	Spotlight
	Spotlight spotlight=new Spotlight("spotlight",new PVector(0,200,100),new PVector(0,0,-450));
	spotlight.setPower(5);
	spotlight.setRadius(300);
	ESF.addLight(spotlight);

	// shader diffuse
	ShaderDiffuse shaderground =new ShaderDiffuse("shaderground", new SunflowColor(.8, .8, .8));
	ESF.addShader(shaderground);

	//cube parameters
	Cube room= new Cube();
	room.setSize(500);
	room.setPosition(0,500,0);
	room.setShader(shaderground);
	ESF.addGeometry("room",room);

	ShaderDiffuse shadersphere =new ShaderDiffuse("shadersphere", new SunflowColor(1, 0, 0));
	ESF.addShader(shadersphere);

	// sphere parameters
	Sphere thesphere= new Sphere();
	thesphere.setSize(50);
	thesphere.setPosition(-100,50,0);
	thesphere.setShader(shadersphere);
	ESF.addGeometry("thesphere", thesphere);


//------------------------------------------------------------------

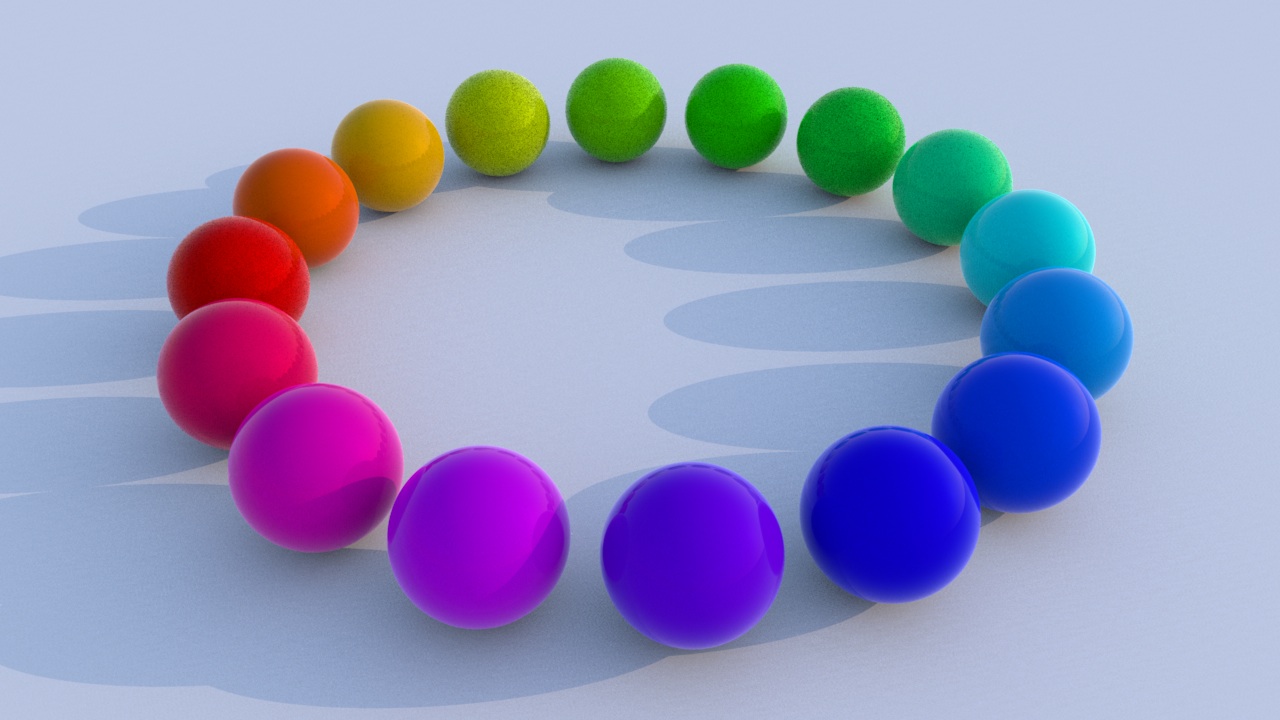

//  COLORS
//------------------------------------------------------------------

		int radius=300;
		int spherenum=16;
		float step=TWO_PI/spherenum;

		for(int i=0;i

//------------------------------------------------------------------
//  SHADERS
//------------------------------------------------------------------

	// set camera parameters
	ESF.setCamera(new float[]{-235.33,-288.22,507.12,-235.00,-287.78,506.28,-0.18,0.90,0.39,60.0});

	// ground shader
	ShaderDiffuse shaderground =new ShaderDiffuse("shaderground", new SunflowColor(.4, .4, .45));
	ESF.addShader(shaderground);

	//add ground
	Ground ground=new Ground();
	ground.setShader(shaderground);
	ESF.addGeometry("ground", ground);


	ShaderDiffuse diffuse_neutral = new ShaderDiffuse("diffuse_neutral", new SunflowColor(.95, .95, .95));
	ESF.addShader(diffuse_neutral);
	// sphere diffuse
	Sphere sphere1= new Sphere(new PVector(-270,50,0));
	sphere1.setSize(50);
	sphere1.setShader(diffuse_neutral);
	ESF.addGeometry("sphere1", sphere1);


	ShaderMirror mirror_neutral=new ShaderMirror("mirror_neutral", new SunflowColor(0.6, 0.6, 0.6));
	ESF.addShader(mirror_neutral);
	// sphere mirror
	Sphere sphere2= new Sphere(new PVector(-120,50,0));
	sphere2.setSize(50);
	sphere2.setShader(mirror_neutral);
	ESF.addGeometry("sphere2", sphere2);


	ShaderShine shiny_neutral = new ShaderShine("shiny_neutral", new SunflowColor(0.5, 0.5, 0.5), .5);
	ESF.addShader(shiny_neutral);
	// sphere shiny
	Sphere sphere3= new Sphere(new PVector(0,50,0));
	sphere3.setSize(50);
	sphere3.setShader(shiny_neutral);
	ESF.addGeometry("sphere3", sphere3);

	ShaderGlass glass_neutral = new ShaderGlass("glass_neutral", new SunflowColor(.7, .7, .7), 3.1);
	ESF.addShader(glass_neutral);
	// sphere glass
	Sphere sphere4= new Sphere(new PVector(120,50,0));
	sphere4.setSize(50);
	sphere4.setShader(glass_neutral);
	ESF.addGeometry("sphere4", sphere4);

	ShaderPhong phong_neutral=new ShaderPhong("phong_neutral", new SunflowColor(.5, .5, .5), new SunflowColor(1, 1, 1), 1, 1);
	ESF.addShader(phong_neutral);
	// sphere phong
	Sphere sphere5= new Sphere(new PVector(270,50,0));
	sphere5.setSize(50);
	sphere5.setShader(phong_neutral);
	ESF.addGeometry("sphere5", sphere5);

	//------------------------------------------------------------------
	//  ANIMATORS & TIMELINE
	//------------------------------------------------------------------

	// ground shader
	ShaderShine shaderground = new ShaderShine("shaderground", new SunflowColor(0.5, 0.5, 0.5), .5);
	ESF.addShader(shaderground);

	//ground parameters
	Ground ground=new Ground();
	ground.setShader(shaderground);
	ESF.addGeometry("ground", ground);

	// FileGeometry use Sunflow standard parser
	FileGeometry model=new FileGeometry("examples/models/topmod1.obj",false);
	ESF.addGeometry("external_obj",model);
	model.setPosition(0,100,0);
	model.setSize(50);

	// add light
	SpericalLight sp=new SpericalLight("Sperical",new PVector(-300,50,200));
	sp.setColor(color(200,200,200));
	sp.setPower(10);
	sp.setSize(50);
	ESF.addLight(sp);

	//------------------------------------------------------------------
	// 	some animators in action
	//------------------------------------------------------------------
	// set the sun position
	guiSunPosition(-30,-10);

	// sun animator
	Animator animsun=new Animator( ESF.thesun,"setLatitude");
	animsun.addKeyFrame(0,-10f);
	animsun.addKeyFrame(timeline.getEnd()/2,-20f);
	animsun.Dump();

	// animator for model position
	Animator animpos=new Animator(model,"setPosition");
	animpos.addKeyFrame(0,					new PVector(-300,100,0));
	animpos.addKeyFrame(timeline.getEnd()/2,new PVector(0,200,0));
	animpos.addKeyFrame(timeline.getEnd(),	new PVector(300,100,0));

	// model rotation
	Animator animarot=new Animator(model,"setRotation");
	animarot.addKeyFrame(0,					new PVector(0,0,0));
	animarot.addKeyFrame(timeline.getEnd(),	new PVector(0,180,0));

	// animator for light color
	Animator animalc=new Animator(sp,"setColor");
	animalc.addKeyFrame(0,					new SunflowColor (color(200,0,0)));
	animalc.addKeyFrame(timeline.getEnd()/2,new SunflowColor (color(0,200,0)));
	animalc.addKeyFrame(timeline.getEnd(),	new SunflowColor (color(200,200,200)));
	animalc.setInterpolationType(animpos.LINEAR_INTERPOLATION);

	// animator with custom listener for movement
	Animator animsp=new Animator(this,"SpericalLightListener");
	animsp.addKeyFrame(0,					0f);
	animsp.addKeyFrame(timeline.getEnd(),	1f);

	// add  animators to timeline
	timeline.addAnimator(animsun);
	timeline.addAnimator(animpos);
	timeline.addAnimator(animarot);
	timeline.addAnimator(animalc);
	timeline.addAnimator(animsp);

	// set timeline to frame 1
	timeline.Stop();

	//------------------------------------------------------------------------------
	// custom listener
	void SpericalLightListener(float t) {
		float a=t*(TWO_PI*4);
		PVector position=new PVector(-300+600*t,  50+abs(100*sin(a)), 300);
		sp.setPosition(position);
	}

	//------------------------------------------------------------------

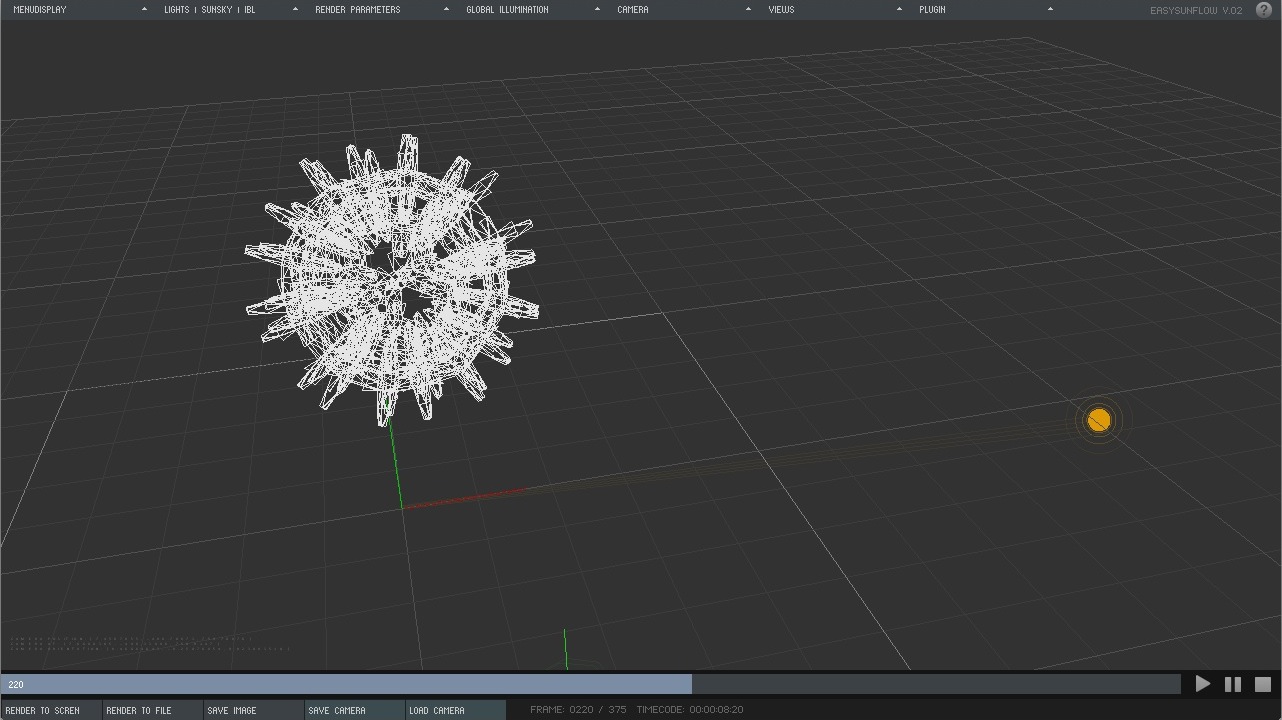

	//  CAMERA KEYFRAMES
	//------------------------------------------------------------------
	// sphere parameters
	Sphere thesphere= new Sphere();
	thesphere.setSize(50);
	thesphere.setPosition(0,50,0);
	ESF.addGeometry("thesphere", thesphere);

	// set keyframes for camera
	ESF.addKeyFrame(
	new PVector(-155.37,-44.077,2594.277),
	new PVector(-155.31,-44.093,2593.279),
	new PVector(-0.0090,1.0,-0.017),60);

	ESF.addKeyFrame(
	new PVector(-70.165,-507.827,954.997),
	new PVector(-70.098,-507.43,954.082),
	new PVector(-0.02,0.918,0.397),60);

	ESF.addKeyFrame(
	new PVector(637.068,-542.27,477.246),
	new PVector(636.412,-541.727,476.722),
	new PVector(0.434,0.84,0.327),60);

	ESF.addKeyFrame(
	new PVector(397.549,-53.279,-875.667),
	new PVector(397.113,-53.247,-874.767),
	new PVector(0.017,1.0,-0.026),60);

	ESF.addKeyFrame(
	new PVector(-60.33,-259.086,-3207.984),
	new PVector(-60.319,-259.013,-3206.986),
	new PVector(0.0080,0.997,-0.073),60);


	// enable camera action
	guisetActionCamera(true);
	// set action camera jitter and amplitude
	guiSetActionCameraParameters(.1,10);

	//------------------------------------------------------------------
	//  PARTICLES SYSTEM
	//------------------------------------------------------------------
	// shader diffuse
	ShaderDiffuse shader =new ShaderDiffuse("shader_particles", new SunflowColor(.9, .2, .2));
	ESF.addShader(shader);

	Particles particles=new Particles(new PVector(0,0,0));
	particles.setShader(shader);
	particles.setRadius(1);

	int np =10000;
	float res=.005;
	float radius=300;
	PVector pos=new PVector(0,0,0);

	for (int i=0;i

	//------------------------------------------------------------------

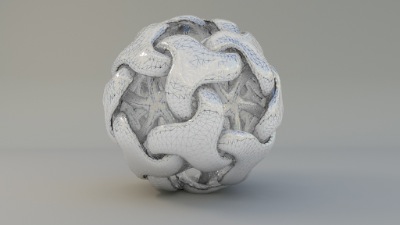

	//  TOXILIBS OBJECT
	//------------------------------------------------------------------
	// add shaders
	ShaderDiffuse shader =new ShaderDiffuse("diffuse_color", new SunflowColor(.8, .8, .8));
	ESF.addShader(shader);
	ShaderDiffuse groundshader =new ShaderDiffuse("groundshader", new SunflowColor(.3, .1, .1));
	ESF.addShader(groundshader);
	// add ground
	Ground ground=new Ground();
	ground.setShader(groundshader);
	ESF.addGeometry("ground", ground);

	//------------------------------------------------------------------
	// source code: http://openprocessing.org/sketch/29202
	//------------------------------------------------------------------
	int VOXEL_RES=50;
	int VOXEL_STROKE_WEIGHT=5;
	int SPHERE_RES=50;
	int SMOOTH_ITER=12;

	// create a hemi-sphere mesh
	WETriangleMesh 	tmp=new WETriangleMesh().addMesh(new toxi.geom.Sphere(150).toMesh(SPHERE_RES));
	WETriangleMesh  obj=MeshLatticeBuilder.build(tmp, VOXEL_RES, VOXEL_STROKE_WEIGHT);

	// smooth mesh filter
	for(int i=0; i

	//------------------------------------------------------------------
	//  TOXILIBS INSTANCES
	//------------------------------------------------------------------
	// low details
	guiSetSceneDetails(5);

	 // create shaders
	ShaderDiffuse shader =new ShaderDiffuse("diffuse_color", new SunflowColor(.8, .8, .8));
	ESF.addShader(shader);
	ShaderDiffuse groundshader =new ShaderDiffuse("groundshader", new SunflowColor(.3, .1, .1));
	ESF.addShader(groundshader);
	ShaderMirror mirror_neutral=new ShaderMirror("mirror_neutral", new SunflowColor(0.6, 0.6, 0.6));
	ESF.addShader(mirror_neutral);
	ShaderPhong phong_neutral=new ShaderPhong("phong_neutral", new SunflowColor(.5, .5, .5), new SunflowColor(1, 1, 1), 1, 1);
	ESF.addShader(phong_neutral);

	Ground ground=new Ground();
	ground.setShader(groundshader);
	ESF.addGeometry("ground", ground);

	// Spherical Harmonics Mesh
	SurfaceMeshBuilder shape = new SurfaceMeshBuilder(new SphericalHarmonics(new float[]{2,4,6,4,0,6,4,2}));
	toxi.geom.mesh.TriangleMesh toximesh = (toxi.geom.mesh.TriangleMesh)shape.createMesh(null,60,50);

	//  add toxi to the scene
	ToxiMesh  mesh=new ToxiMesh();
	mesh.setMesh(toximesh);
	mesh.setPosition(0,150,0);
	mesh.setShader(shader);
	ESF.addGeometry("toxiobj",mesh);

	// create instances
	int n=10;
	int id=0;
	for (int z=0;z.5?mirror_neutral:phong_neutral);
			inst.setSize(caso);
			inst.setRotation(0,random(180),random(180));
			inst.setPosition(x*100,120,z*100);
			ESF.addGeometry("ins"+id++,inst);
		}
	}

	//------------------------------------------------------------------
	//  TOXILIBS STLReader
	//------------------------------------------------------------------
	// load STL model
	toxi.geom.mesh.TriangleMesh stl = (toxi.geom.mesh.TriangleMesh)new STLReader().loadBinary(sketchPath("examples/models/giraffa.stl"),STLReader.TRIANGLEMESH);

	ToxiMesh  m=new ToxiMesh();
	m.setMesh(stl);
	m.setPosition(0,0,0);
	m.setSize(100);
	m.setRotation(-90,0,0);
	ESF.addGeometry("toxitest",m);

	//------------------------------------------------------------------

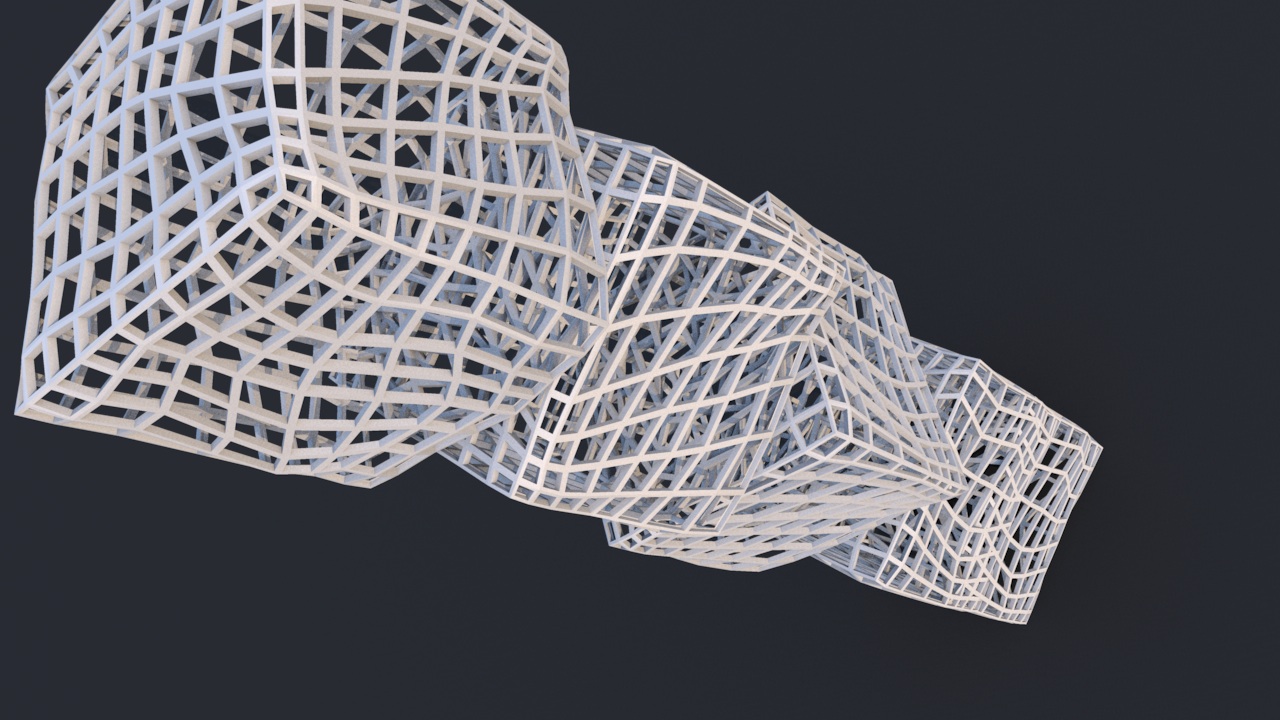

	//  HEMESH OBJECT
	//------------------------------------------------------------------
	// hemesh creator
	HEC_Cube cube = new HEC_Cube().setEdge(300).setWidthSegments(1).setHeightSegments(1).setDepthSegments(1);

	// hemesh modifiers
	HEM_Lattice lattice = new HEM_Lattice().setDepth(6).setWidth(6);
	HES_Planar planar = new HES_Planar().setRandom(true).setRange(0.7);
	HES_Smooth sm = new HES_Smooth();

	// add modifiers to mesh
	HE_Mesh m = new HE_Mesh(cube);
	m.subdivide( planar, 2 );
	m.subdivide( sm, 1);
	m.modify(lattice);

	// add hemesh to scene
	HemeshMesh mesh=new HemeshMesh(m);
	mesh.setPosition(0,150,0);
	mesh.setSmooth(false);
	ESF.addGeometry("hemesh_",mesh);

	//------------------------------------------------------------------
	//  HEMESH INSTANCES
	//------------------------------------------------------------------
	// shader diffuse
	ShaderDiffuse shaderground =new ShaderDiffuse("shaderground", new SunflowColor(.2, .2, .2));
	ESF.addShader(shaderground);
	//ground parameters
	Ground ground=new Ground();
	ground.setShader(shaderground);
	ESF.addGeometry("ground", ground);


	//------------------------------------------------------------------

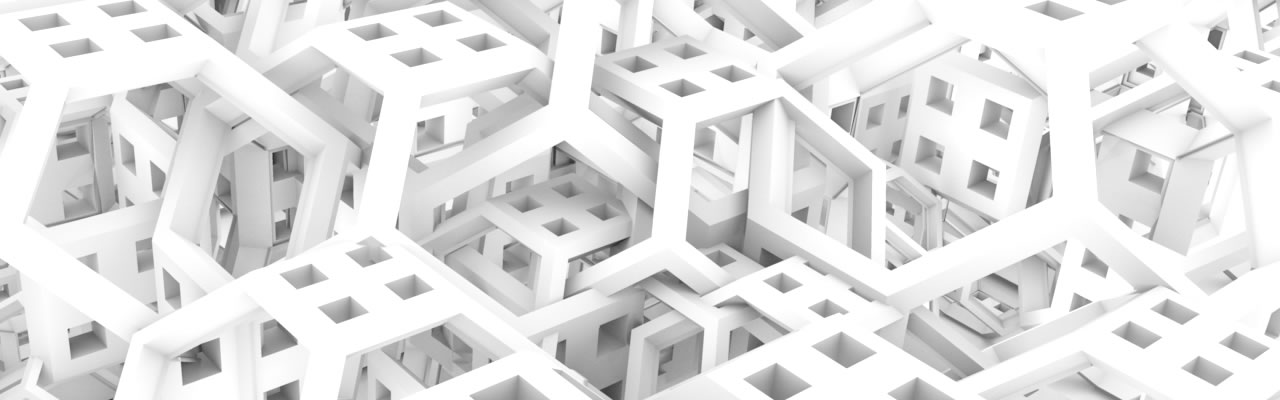

	// hemesh creator
	HEC_Cube cube = new HEC_Cube().setEdge(100).setWidthSegments(1).setHeightSegments(1).setDepthSegments(1);

	//hemesh modifiers
	HEM_Lattice lattice = new HEM_Lattice().setDepth(2).setWidth(2);
	HES_Planar planar = new HES_Planar().setRandom(true).setRange(0.7);
	HES_Smooth sm = new HES_Smooth();

	// add modifiers to mesh
	HE_Mesh m = new HE_Mesh(cube);

	m.subdivide( planar, 2 );
	m.subdivide( sm, 1);
	m.modify(lattice);

	//------------------------------------------------------------------

	// add emesh to scene
	HemeshMesh mesh=new HemeshMesh(m);
	mesh.setPosition(0,60,0);
	mesh.setSmooth(false);
	ESF.addGeometry("hemesh_",mesh);


	ShaderDiffuse shader =new ShaderDiffuse("diffuse", new SunflowColor(.9, .9, .9));
	ESF.addShader(shader);

	int n=3;
	int id=0;
	for (int i=0;i<=n;i++) {

	  HemeshInstance  item=new HemeshInstance(mesh, shader);
	  item.setPosition(new PVector(0,120+100*i,0));
	  item.setRotation(new PVector(0,45*i,0));
	  ESF.addGeometry("hemeshinstance"+id, item);

	  id++;
	}

//------------------------------------------------------------------
//  HEMESH MODIFIERS ANIMATION
//------------------------------------------------------------------
	//hemesh creator
	HEC_Cube cube = new HEC_Cube().setEdge(400).setWidthSegments(4).setHeightSegments(4).setDepthSegments(4);

	//hemesh modifiers
	HEM_Lattice lattice = 	new HEM_Lattice().setDepth(6).setWidth(6);

	// create dynamic mesh
	HE_DynamicMesh hm = new HE_DynamicMesh(new HE_Mesh(cube));
	// add modifiers and update
	hm.add(lattice);
	hm.update();

	ShaderDiffuse shader  =new ShaderDiffuse("shader", new SunflowColor(.8,.01, .02));
	ESF.addShader(shader);


	HemeshMesh themesh=new HemeshMesh(hm);
	themesh.setPosition(0,200,0);
	themesh.setSmooth(false);
	themesh.setShader(shader);
	ESF.addGeometry("hemesh_",themesh);

	// animator for hemesh modifiers
	Animator animmesh=new Animator(this,"HemeshMeshListener");
	animmesh.addKeyFrame(0,0.0);
	animmesh.addKeyFrame(timeline.getEnd()/2,1.0);
	animmesh.addKeyFrame(timeline.getEnd(),.5);
	timeline.addAnimator(animmesh);
	timeline.Stop();


	void HemeshMeshListener(float t){
		float a=t*TWO_PI*2;
		float c=cos(a);
		float s=sin(a);

		lattice.setDepth(30+10*c);
		lattice.setWidth(15+10*s);
		themesh.update();
	}

	//------------------------------------------------------------------
	//  OBJLOADER EXAMPLE
	//------------------------------------------------------------------
	// disable sun light
	guiSetSunVisible(false);

	// custom wire shader
	// name,fill color,wire color,wire size,samples,distance
	ShaderWireframeAO  wire=new ShaderWireframeAO("wire",new SunflowColor(.9,.9,.9),new SunflowColor(.5,.5,.5),.5,32,200);
	ESF.addShader(wire);

	// ObjLoader load model and set the scale to 80
	ObjLoader topmod=new ObjLoader("examples/models/topmod2.obj",80);
	topmod.setShader(wire);
	topmod.setPosition(0,250,0);

	// add background
	Background back=new Background();
	back.setColor(40,80,100);
	ESF.addGeometry("background_",back);

	//------------------------------------------------------------------
	//  OBJLOADER INSTANCES
	//------------------------------------------------------------------
	// low details
	guiSetSceneDetails(5);

	ObjLoader model=new ObjLoader("examples/models/girl.obj",.5);
	ESF.addGeometry("_model_",model);
	// create instances
	int n=10;
	int m=10;
	int id=0;
	for (int y=0;y

category: Application tags: 3d, render engine

Hello mr. Button

Streetview-Clock
